Advanced Setup: Portainer and NPM

This tutorial covers an advanced deployment scenario using Portainer for container management and Nginx Proxy Manager (NPM) as a reverse proxy.

This setup is ideal for users who want:

  • A GUI to manage Docker containers (Portainer).
  • Automatic SSL/TLS certificates (NPM + Let's Encrypt).
  • Optimized Nginx configuration for PiGallery2.
  • A shared configuration structure.

Prerequisites

  1. Docker and Docker Compose installed on your server.
  2. A Domain Name with DNS records pointing to your server's IP address.
  3. Ports 80 and 443 open on your firewall. Keep the admin ports of Portainer (9443) and NPM (81) closed to the internet: reach them from your local network or through a VPN.

Preparation

It is recommended to keep all configuration files in a centralized location for easy backups.

mkdir -p ~/configs/nginx-proxy-manager/data
mkdir -p ~/configs/nginx-proxy-manager/letsencrypt
mkdir -p ~/configs/pigallery2/config

1. Portainer Setup

Portainer provides a web UI for managing Docker stacks, containers, and networks.

Deploy Portainer

Run the following command to start Portainer:

docker run -d -p 9443:9443 --name portainer --restart=always -v /var/run/docker.sock:/var/run/docker.sock -v portainer_data:/data portainer/portainer-ce:latest

Access it at https://<your-server-ip>:9443.


2. Shared Network

To allow NPM to communicate with other containers, we use a shared Docker network named frontend.

In Portainer, go to Networks -> Add network:

  • Name: frontend
  • Driver: bridge

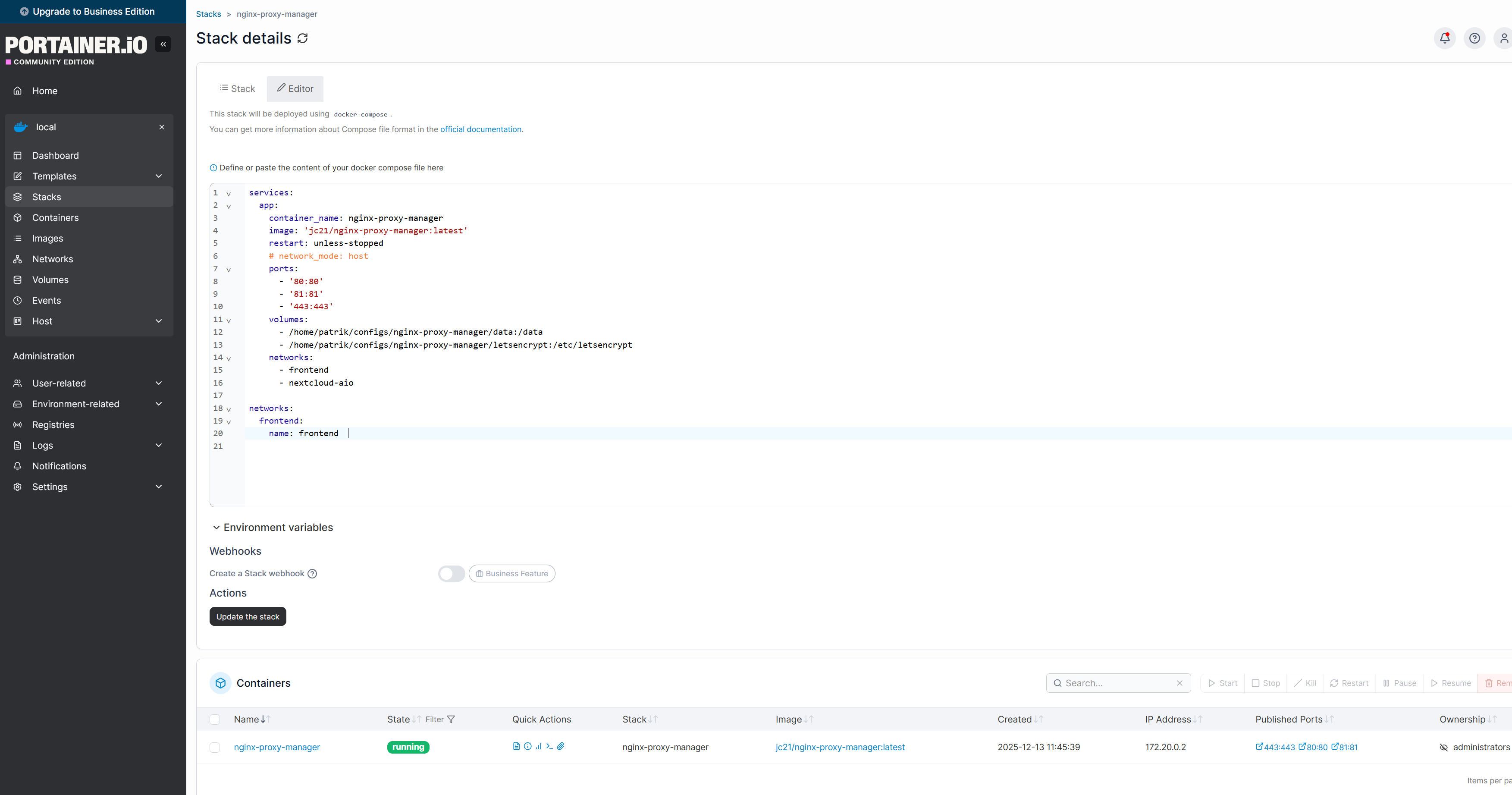

3. Nginx Proxy Manager (NPM) Stack

NPM will handle SSL termination and routing.

In Portainer, create a new Stack (Docker Compose) named nginx-proxy-manager:

screen

version: '3.8'
services:
  app:
    container_name: nginx-proxy-manager
    image: 'jc21/nginx-proxy-manager:latest'
    restart: unless-stopped
    ports:
      - '80:80'
      - '81:81'
      - '443:443'
    volumes:
      - /home/<user>/configs/nginx-proxy-manager/data:/data
      - /home/<user>/configs/nginx-proxy-manager/letsencrypt:/etc/letsencrypt
    networks:
      - frontend

networks:
  frontend:
    external: true
Replace <user> with your actual username.

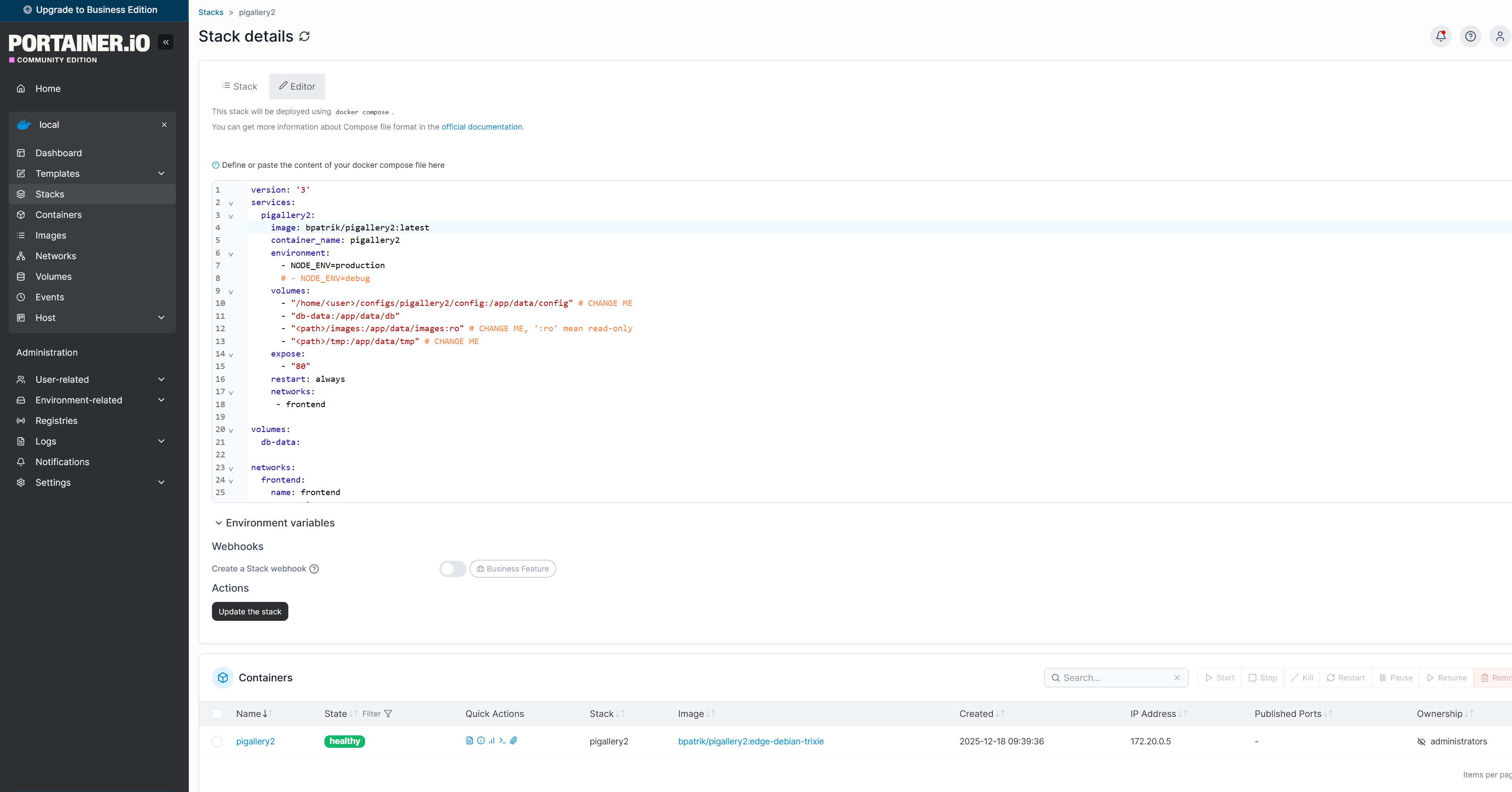

4. PiGallery2 Stack

Deploy PiGallery2 and connect it to the frontend network.

Create a new Stack named pigallery2 and copy the content of this compose file (original):

screen

version: '3'
services:
  pigallery2:
    image: bpatrik/pigallery2:latest
    container_name: pigallery2
    deploy:
      resources:
        limits:
          memory: 3G # <1GB RAM might also work. It will trigger GC more often. GC is slow. See https://github.com/bpatrik/pigallery2/issues/1080
    environment:
      - NODE_ENV=production # set to 'debug' for full debug logging
      - Server-trustProxy=uniquelocal # log the client's IP, not NPM's (see "Client IP in the logs" below)
      # - NODE_OPTIONS=--enable-source-maps # enable source map support on the backend for development
    volumes:
      - "/home/<user>/configs/pigallery2/config:/app/data/config"
      - "db-data:/app/data/db"
      - "/mnt/images:/app/data/images:ro" # Path to your photos
      - "/mnt/pigallery2-tmp:/app/data/tmp" # Path to a tmp folder
    expose:
      - "80"
    restart: always
    networks:
      - frontend

volumes:
  db-data:

networks:
  frontend:
    external: true

5. Configuring NPM

Access the NPM admin interface at http://<your-server-ip>:81.

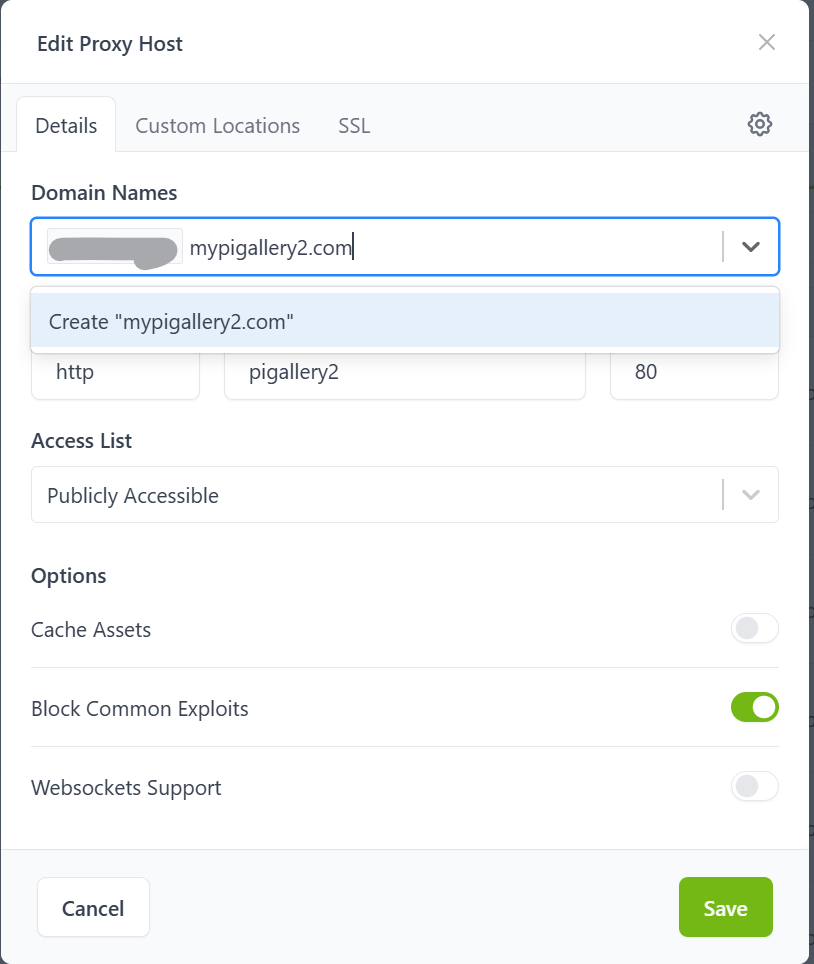

Add PiGallery2 Proxy Host

  1. Domain Names: photos.yourdomain.com
  2. Scheme: http
  3. Forward Hostname / IP: pigallery2
  4. Forward Port: 80

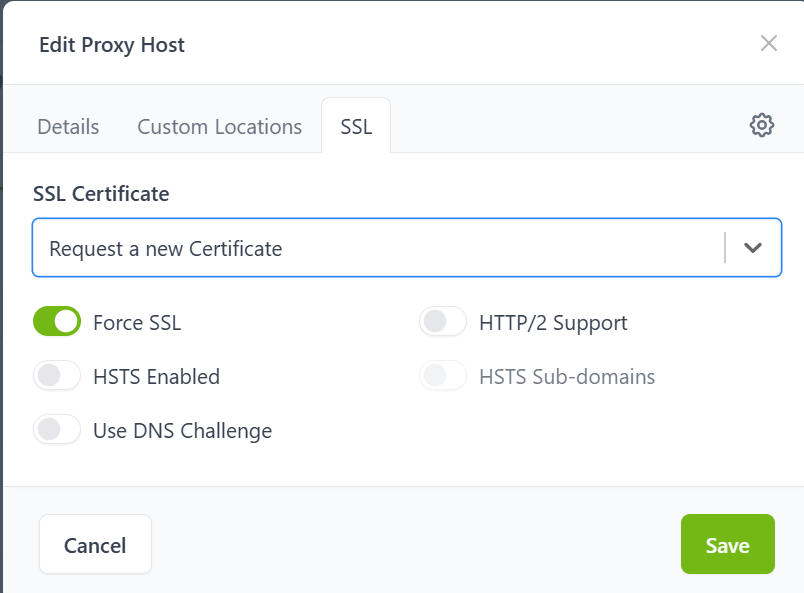

  5. SSL Tab: Select "Request a new SSL Certificate", enable "Force SSL", "HTTP/2 Support" and "HSTS Enabled".

screen] screen

Rate limiting

PiGallery2 does not limit the request rate itself (e.g. password guessing on the login page), it relies on the reverse proxy for that. The rate limits need zones on the http level of nginx, which NPM reads from /data/nginx/custom/http_top.conf. Create ~/configs/nginx-proxy-manager/data/nginx/custom/http_top.conf with:

# The limits are per client IP. Raise them if many users share one IP (e.g. an office behind a NAT).
# login attempts (password guessing): 1 per second on average
limit_req_zone $binary_remote_addr zone=pigallery2_login:10m rate=1r/s;
# everything else. Opening a folder loads many thumbnails at once, so keep it generous.
limit_req_zone $binary_remote_addr zone=pigallery2_api:10m rate=50r/s;
limit_req_status 429;

Then restart the NPM stack so it reads the file.

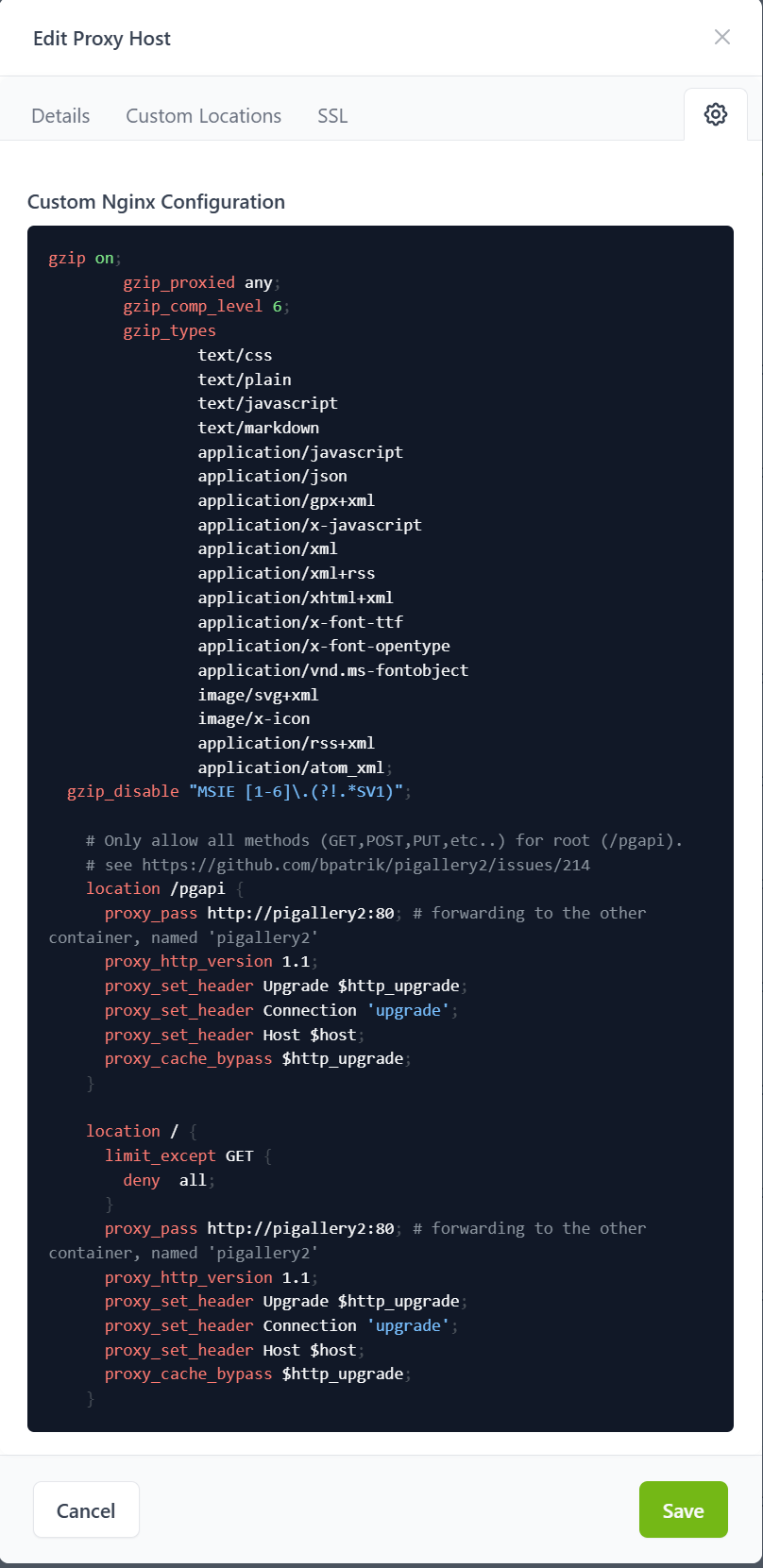

Advanced Tab

Paste the following to enable Gzip compression, rate limiting and handle API/UI routing correctly (the same as the default nginx.conf):

screen

# text/html is always compressed. Photos and videos are already compressed, so they are not listed.
gzip on;
gzip_proxied any;
gzip_comp_level 6;
gzip_types
    text/css
    text/plain
    text/javascript
    text/markdown
    application/javascript
    application/json
    application/manifest+json
    application/gpx+xml
    application/xml
    image/svg+xml
    image/x-icon;

# Browsers don't guess the type of a file (e.g. don't run an uploaded file as a script).
add_header X-Content-Type-Options "nosniff" always;

# Login of users and of password protected sharings: limited strictly to slow down password guessing.
# Case-insensitive (~*), as PiGallery2 also accepts e.g. /pgapi/USER/login.
# NOTE: change '/pgapi' here too if you changed Server.apiPath or Server.urlBase.
location ~* ^/pgapi/(user|share)/login/?$ {
    limit_req zone=pigallery2_login burst=10 nodelay;
    proxy_pass http://pigallery2:80;
    proxy_http_version 1.1;
    proxy_set_header Host $host;
    # the client IP for PiGallery2's logs (e.g. failed logins), see Server.trustProxy
    proxy_set_header X-Forwarded-For $remote_addr;
    proxy_set_header X-Forwarded-Proto $scheme;
}

# API handles all methods (GET, POST, PUT, DELETE, etc.)
location /pgapi {
    # uploads: NPM allows 2000 MB bodies, this sends them on without storing the whole file first
    proxy_request_buffering off;
    limit_req zone=pigallery2_api burst=500 nodelay;
    proxy_pass http://pigallery2:80;
    proxy_http_version 1.1;
    proxy_set_header Host $host;
    proxy_set_header X-Forwarded-For $remote_addr;
    proxy_set_header X-Forwarded-Proto $scheme;
}

# UI is restricted to GET (and HEAD) for security
location / {
    limit_except GET {
        deny all;
    }
    limit_req zone=pigallery2_api burst=500 nodelay;
    proxy_pass http://pigallery2:80;
    proxy_http_version 1.1;
    proxy_set_header Host $host;
    proxy_set_header X-Forwarded-For $remote_addr;
    proxy_set_header X-Forwarded-Proto $scheme;
}

Note: create http_top.conf first: without its zones nginx rejects the limit_req lines of the Advanced tab.

Client IP in the logs

PiGallery2 logs the IP of failed logins (useful e.g. for Fail2Ban). Behind a proxy it only sees the proxy's IP, unless you tell it to trust the proxy. The compose file above does this with Server-trustProxy=uniquelocal (or set Server.trustProxy in Settings → Server, "Under the hood" mode). That trusts the X-Forwarded-For header from private network addresses, like the Docker network of NPM. Don't set it to true: then any client can fake its IP.


6. Fail2Ban (Optional)

Rate limiting slows password guessing down; Fail2Ban bans the IPs that keep failing. Details and other setups: Fail2Ban guide.

  1. In the pigallery2 stack, keep Server-trustProxy=uniquelocal (see above) and send the log to the journal with a fixed tag (it keeps working when Portainer re-creates the container):
    services:
      pigallery2:
        # ... as above
        logging:
          driver: journald
          options:
            tag: pigallery2

    On a host without systemd's journal (e.g. Unraid, Synology) write a log file instead.
  2. Create a new stack named fail2ban. The compose below is an example to start from (it's not maintained with PiGallery2, check the image's docs for its current options). It bans in Docker's DOCKER-USER chain on ports 80 and 443, so a banned IP can't reach anything behind NPM.
# Fail2Ban for PiGallery2: bans the IPs that keep failing to log in.
# Needs the pigallery2 container to
#  - log to the journal with a fixed tag:  logging: {driver: journald, options: {tag: pigallery2}}
#  - log the client IP when behind a reverse proxy:  Server-trustProxy=uniquelocal
# The entrypoint below writes the filter and the jail, so no other files are needed.
services:
  fail2ban:
    image: crazymax/fail2ban:debian # the debian image can read the systemd journal
    container_name: fail2ban
    network_mode: host # it changes the host's firewall
    cap_add:
      - NET_ADMIN
      - NET_RAW
    volumes:
      - fail2ban-data:/data
      - /var/log/journal:/var/log/journal:ro
      - /run/log/journal:/run/log/journal:ro
      - /etc/machine-id:/etc/machine-id:ro
    restart: unless-stopped
    entrypoint:
      - /bin/sh
      - -c
      - |
        mkdir -p /data/filter.d /data/jail.d
        cat > /data/filter.d/pigallery2.conf <<'END'
        [Definition]
        # the first "Failed login from IP" of the line; the user name comes after the IP
        failregex = ^.*?\bAuthenticationMWs Failed login from IP `<ADDR>`(?: for user:| with sharing:| no user or password provided)
        ignoreregex =
        [Init]
        journalmatch = CONTAINER_TAG=pigallery2
        END
        cat > /data/jail.d/pigallery2.local <<'END'
        [pigallery2]
        enabled = true
        filter = pigallery2
        backend = systemd
        # Docker forwards published ports past the INPUT chain, so ban in DOCKER-USER.
        # These are the ports of your reverse proxy container (80, 443), or of pigallery2 if it is published directly.
        banaction = iptables-multiport
        chain = DOCKER-USER
        port = http,https
        maxretry = 5
        findtime = 10m
        bantime = 1h
        bantime.increment = true
        # never ban your own networks (add your VPN's too)
        ignoreip = 127.0.0.1/8 ::1 192.168.0.0/16 10.0.0.0/8 172.16.0.0/12
        END
        exec /entrypoint.sh fail2ban-server -f -x -v start

volumes:
  fail2ban-data:

Check that it works: docker exec fail2ban fail2ban-client status pigallery2 lists the failed logins and bans. Unban an IP with docker exec fail2ban fail2ban-client set pigallery2 unbanip <ip>.


Summary

With this setup, you have:

  • Portainer to easily manage and update your containers.
  • Nginx Proxy Manager providing SSL and routing.
  • PiGallery2 securely accessible via your own subdomain.
  • A shared Docker network allowing internal communication between the proxy and the app.
