Authentik Setup (Optional)

If you run multiple self-hosted services, you may want Single Sign-On (SSO). Authentik is a great choice and integrates cleanly with PiGallery2 via OpenID Connect (OIDC).

Deploy Authentik

In Portainer, create a new Stack for Authentik. It is recommended to use the latest docker-compose.yml from the official Authentik documentation. screen

Key configuration points for PiGallery2 integration:

  • Ensure Authentik is on the frontend network if you want NPM to route to it internally.

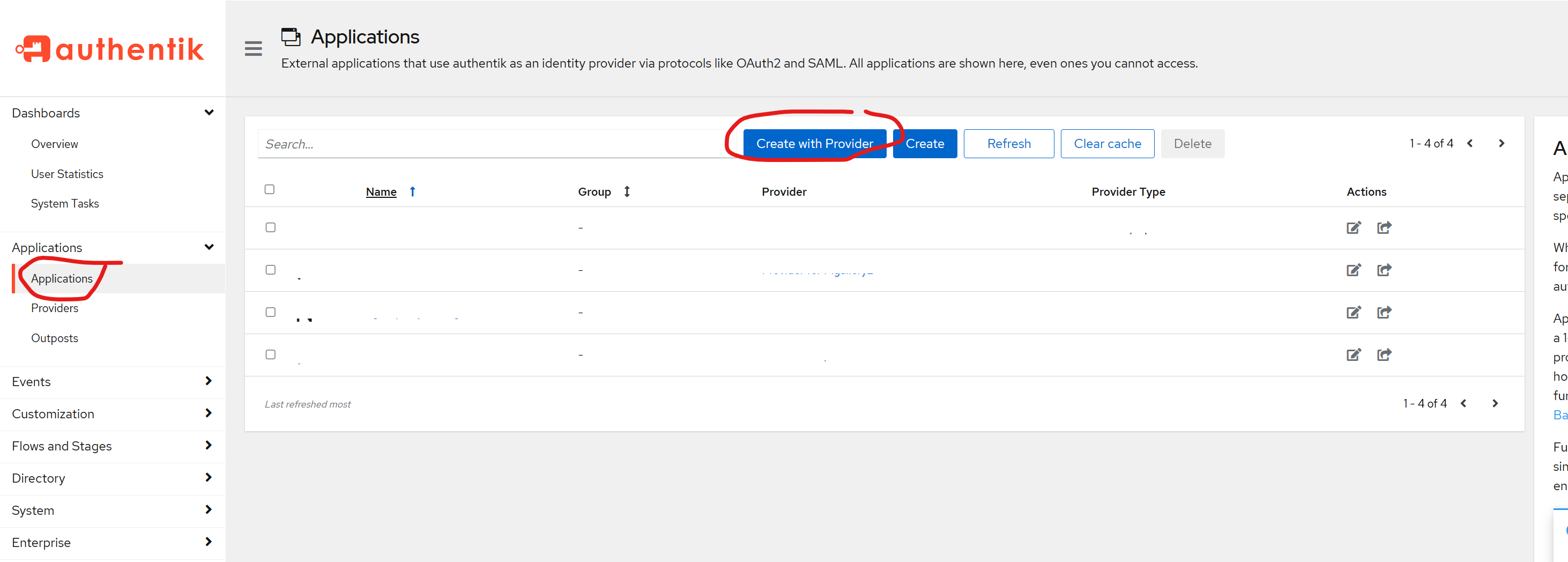

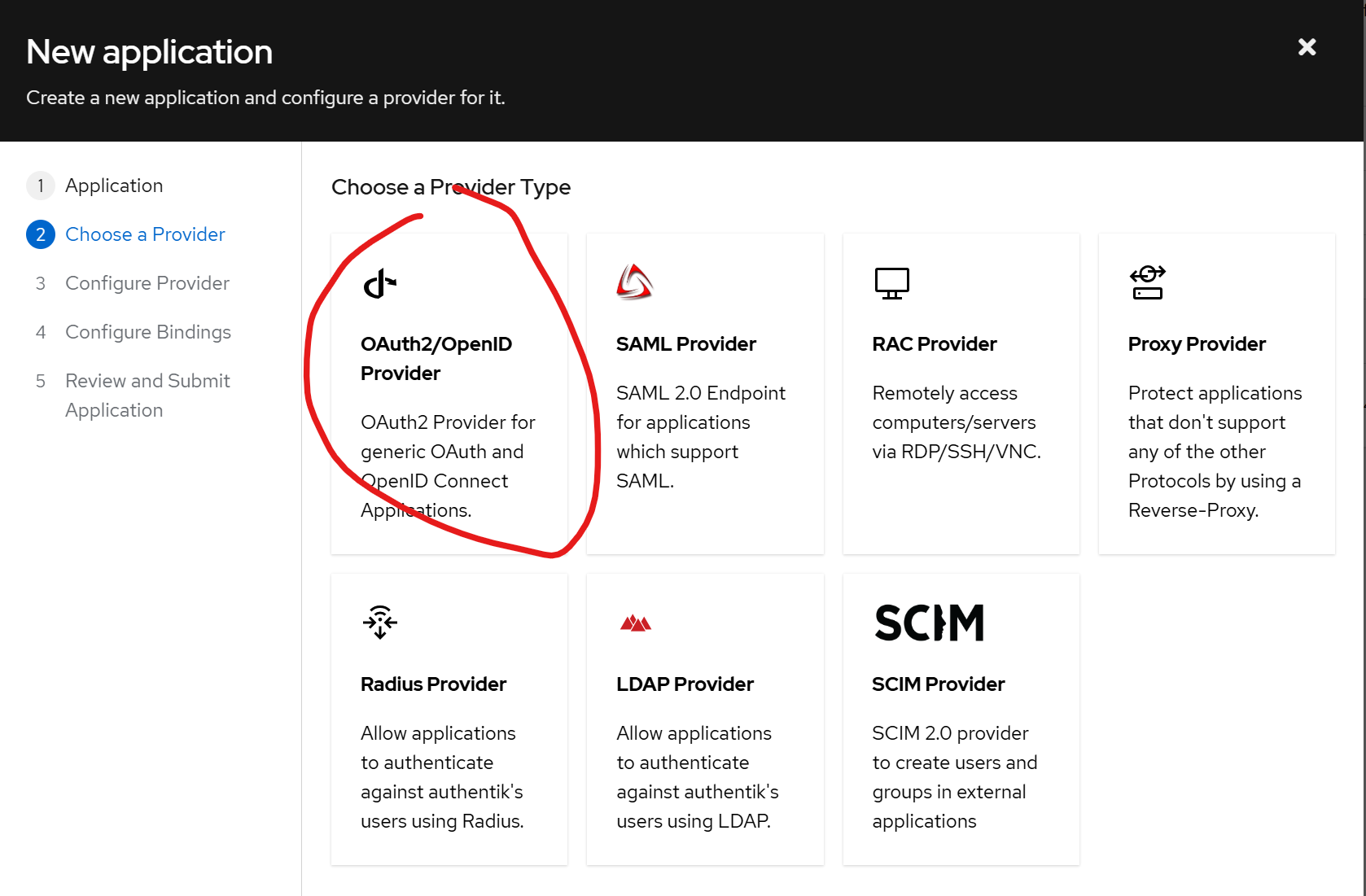

  • In Authentik, create a new OAuth2/OpenID Provider.

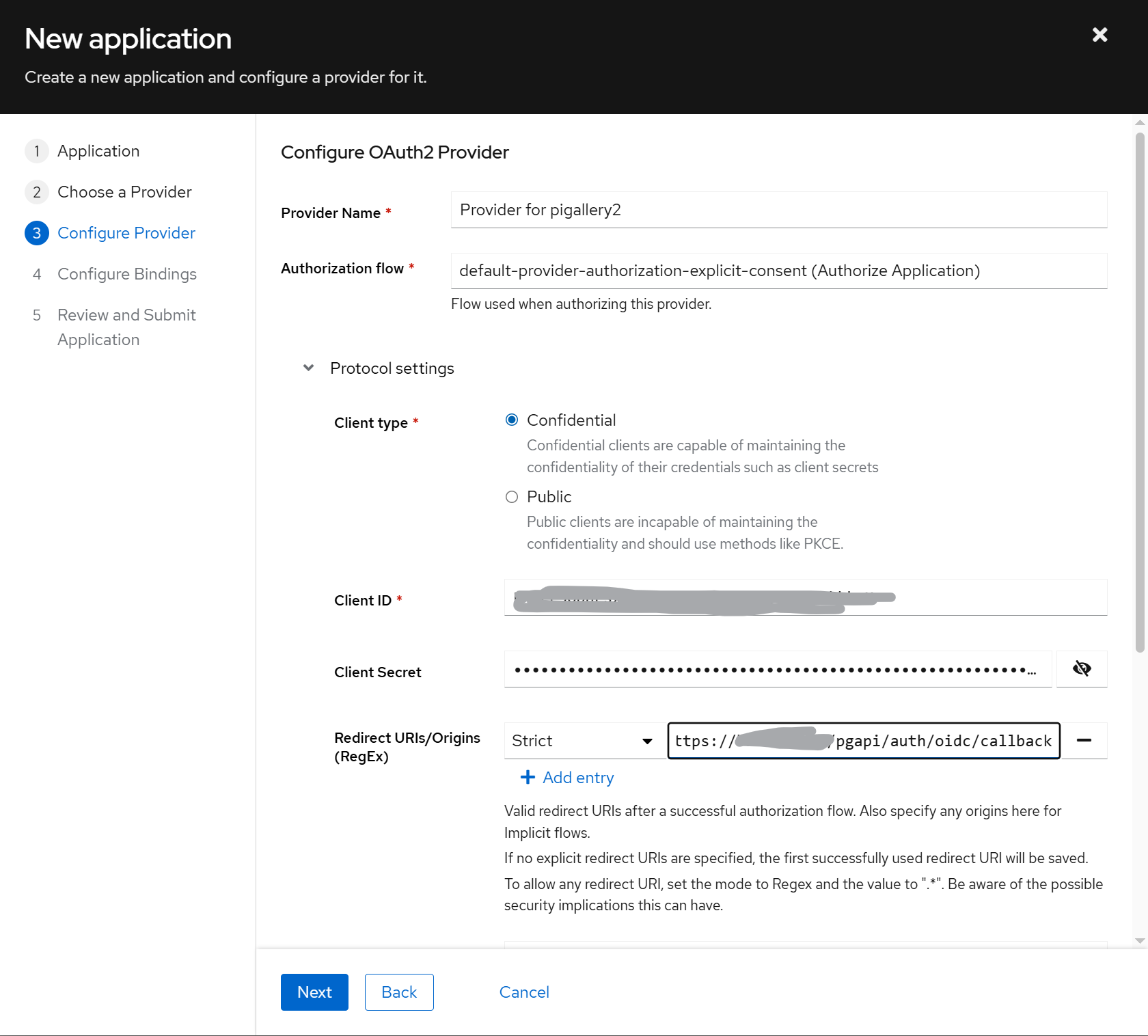

  • Set the Redirect URI to: https://photos.yourdomain.com/pgapi/auth/oidc/callback

screen screen screen screen

Configure PiGallery2 for OIDC

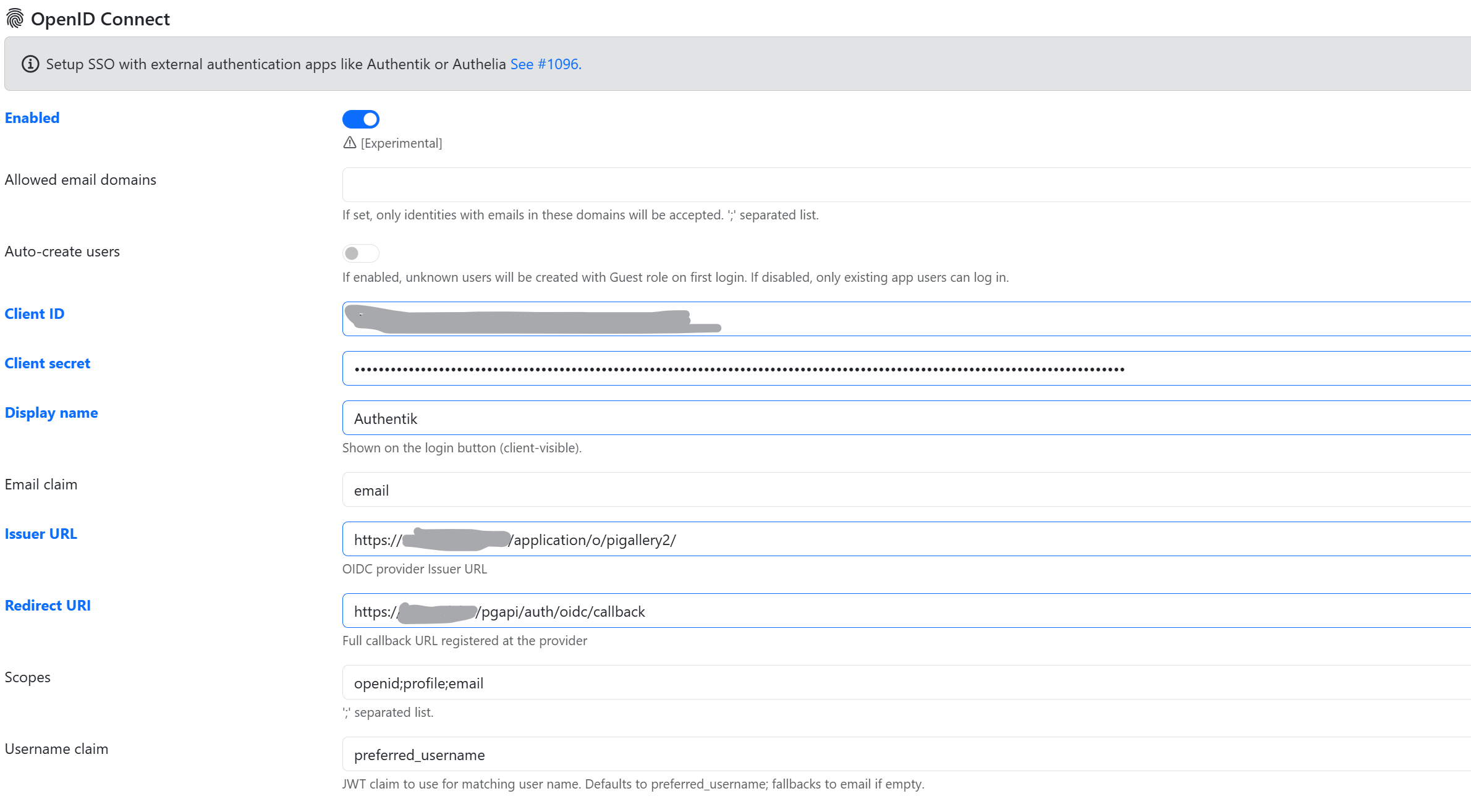

In the PiGallery2 web interface, go to Settings -> Users and enable OpenID Connect. Use the Client ID, Client Secret, and Issuer URL provided by Authentik.

screen

The Issuer URL works with or without its trailing slash, and you can also enter the full discovery URL (ending in /.well-known/openid-configuration).

Use an https:// Issuer URL. An http:// Issuer URL works too, for local test setups: PiGallery2 then logs a warning and talks to the provider over plain http. With an https:// Issuer URL, PiGallery2 refuses provider endpoints that are not https://.

Who can log in as whom

By default, PiGallery2 matches the OIDC login to an app user by name (the preferred_username claim, or the part of the email before the @). This is safe if you trust everyone who has an account at your provider and they can't change their own username.

If that is not the case (e.g.: open registration, or users can rename themselves), enable Strict security under the OpenID Connect settings:

  • On the first OIDC login, the app user gets linked to the provider account. Later logins only work from that account.
  • Only users up to Max role for linking (default: User) get linked by name. To link an admin, raise it to Admin, log in once with OIDC, then set it back.
  • The email fallback uses the full, verified email address.
  • If you reinstall your provider, the accounts get new ids: use the unlink button in Settings -> Users to let them link again.
